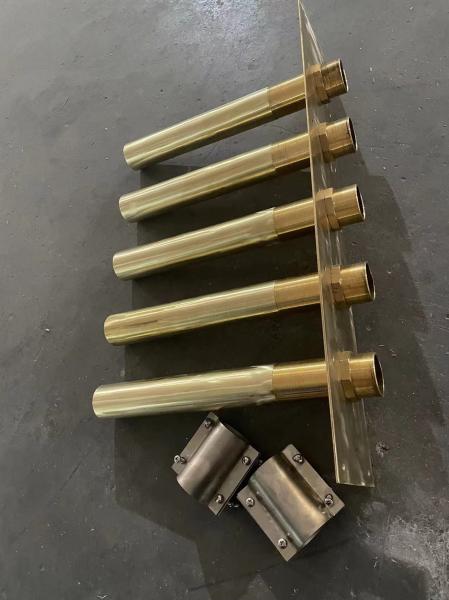

Shield Chamber Waveguide Window 0.5Lbs 0.125Inches Copper Waveguide

Shield chamber waveguide

Shielding room waveguide is a key component for shielding electromagnetic wave in shielding room or shielding room. First, the definition and function of the shielding room waveguide is a kind of metal pipe, usually installed in the shielding room or shielding room wall, used to shield and transmit electromagnetic waves in a specific frequency range. Its main function is to prevent electromagnetic wave interference room or shielding room equipment, while ensuring that the need to transmit electromagnetic wave can pass smoothly. Second, the working principle of shielding room waveguide working principle based on the waveguide principle. It allows electromagnetic waves above the cut-off frequency to pass through and attenuate, while electromagnetic waves below the cut-off frequency are shielded or effectively attenuated. This frequency characteristic enables the shielded-room waveguide to selectively transmit or shield electromagnetic waves as required. 3. The structure and shape of the waveguide can be used according to the requirements of different shapes, such as circular, rectangular, hexagonal and other commonly used shapes. Choosing the proper diameter and length of the waveguide is the key to design the waveguide. In addition, the wall thickness and metal type of waveguide also affect the shielding effectiveness.
